BNGenerator Version 0.25
A generator for random Bayesian
network
|
|
|
Thanks for the visit!
Last up date: September 09 2015.
Introduction
Bayesian networks are popular representations for uncertainty;
the idea is to use a directed acyclic graph and a collection of conditional
probability distributions to represent a possibly complex joint probability
distribution. Each node in the graph represents a variable, and the
edges of the graph represent the direct dependencies among variables.
BNGenerator is a program that generates random Bayesian networks, guaranteeing
that the distribution of generated networks is (asymptotically)
uniform. The program is coded in Java and is freely distributed under
the GNU license.
The program accepts constraints on the maximum degree for nodes and on
the maximum number of arcs in the network; these constraints limit
how "connected" the networks are. Also, it is possible to control
the induced width of the network, leading to more "realistic" networks.
Other constraints (for example, maximum number of parents for each
node) could be coded with relatively simple modifications in the program;
the theoretical analysis of the algorithm and the source code are
available, and these modifications should not be too hard.
BNGenerator was coded by
Jaime Shinsuke Ide
, as a result of research
conducted by Jaime S. Ide and
Fabio G. Cozman
. Ideas and results were based on the work of
G. Melançon
and M. Bousquet-Melou, and some parts of BNGenerator were
directly inspired by the
DagAlea
software. The research was funded by
FAPESP
.
Generation method
A Bayesian network is composed of
- A directed acyclic graph with N nodes.
- For each node, a random variable with V values.
- For each variable, a conditional probability distribution p(X|P)
, where P indicates the variables that are parents
of X in the graph (that is, the nodes associated with
P are parents of the node associated with X
).
To generate a Bayesian network, we need to generate a
directed acyclic graph with N nodes, and for each node we
must generate a number V of values, and then we must generate
a probability distribution p(X|P). Our approach is to focus
on each one of these problems separately; that is, we first generate
a directed acyclic graph that is uniformly distributed in the space of
graphs under consideration, then we generate a number V that
is uniformly distributed within some interval, and then we randomly generate
the probability distributions. It turns out that generating the number
of values for each variable is easy, and that there exists a simple algorithm
for generating the probability distributions given the graph and the
values. The real problem is to generate random directed acyclic graphs.
There is a huge number of directed acyclic graphs for any reasonably
large number of nodes. Even though there are expressions that would allow
one to compute the number of directed acyclic graphs, there does not seem
to exist a simple method that would allow us to sample uniformly from this
huge space. Basically, there does not seem to be a method to map the integers
(from 1 to some large number M) to the directed acyclic graphs with
N nodes. But even if we knew how to sample from the space
of all possible directed acyclic graphs, that knowledge would not give us
a practical solution to the problem of generating random Bayesian networks.
It has been observed that in practice Bayesian networks are rather sparse
graphs, in the sense that nodes have a few parents and children (that is,
the degree of the nodes is not too large). Now, our problem
then is to generate uniformly distributed samples from the class of
directed acyclic graphs with restrictions on node degree (or possibly,
restrictions on the number of parents, number of children, number of
arcs, etc). This is a hard problem.
Our approach, and the proofs that our algorithms for generating random
directed acyclic graphs are correct, are in the paper
Jaime Shinsuke Ide
, Fabio Gagliardi
Cozman
. Generating random
Bayesian networks
, Brazilian Symposium on Artificial Intelligence
, Recife, Pernambuco, Brazil, 2002.
To generate random directed acyclic graphs, BNGenerator uses
MCMC methods
(Markov chain Monte Carlo). We define a set of possible
transitions for a graph (that is, a set of possible modifications
for the graph) and we select one transition at random. Given the characteristics
of the possible transitions and the selection process, a random directed
acyclic graph with uniform distribution is produced after several transitions.
In fact, the result is asymptotic: in the limit of infinitely many
transitions, a uniformly distributed sample will be produced. In the
paper indicated previously, we present the transitions and selection
process used by BNGenerator, and prove that they have the right properties:
after many transitions, we obtain a uniform random Bayesian network. In
theory we would have to wait for infinitely many iterations, but in practice
we stop at a large number. Empirical studies suggest that for a graph
with N nodes, we should perform at least 4 * N *
N transitions. That is the number of transitions that BNGenerator
adopts by default, but the user can specify a different number.
When we have a random directed acyclic graph, it is easy to generate
a number V for each node. We just sample the uniform distribution
between 2 and some maximum allowed number Vm. Once we have
the number of values for all variables in the graph, we can generate
probability distributions by sampling from Dirichlet distributions.
See the paper
indicated previously for a more detailed discussion.
BNGenerator starts from a very simple Bayesian network (a chain of
nodes where each node has at most a parent and a child) and keeps performing
transitions. The user can specify how many transitions are performed before
a network is saved in file. After a network is saved, BNGenerator can keep
performing transitions and saving more networks.
An important point is that we differentiate between generic graphs
and graphs that do have a single path (directed or undirected) between any
two nodes. The latter graphs are said singly connected, and also
called polytrees. The distinction is important in Bayesian networks
because singly connected networks have interesting properties that do not
generalize to other classes of networks. It should be noted that
no guaranteed algorithm for generating random polytrees seems to
exist at the moment (that is, an algorithm that can guarantee the distribution
of the generated samples). BNGenerator can produce random singly connected
Bayesian networks if the user wishes to do so.
Controlling induced width constraint
Recently, we added a new feature on BNGenerator as described with details
on the paper
Jaime Shinsuke Ide
, Fabio Gagliardi
Cozman
. Generation of Random Bayesian Networks with Constraints
on Induced Width, with Applications to the Average Analysis od d-Connectivity,
Quasi-random Sampling, and Loopy Propagation. University of São
Paulo. Technical Report June 2003. (320KB
)
We eventually found that the most appropriate quantity to control
is the induced width of networks. The induced width of a network can
be easily explained and understood; it conveys the algorithmic complexity
of inferences and, indirectly, it captures how dense the network is.
Our tests indicate (rather subjectively) that a network with low induced
width ''looks like'' real networks in the literature. Besides, it makes
sense to control induced width, as we are usually interested in comparing
algorithms or parameterizing results with respect to the complexity
of the underlying network, and induced width is the main indicator of
such complexity. Unfortunately, the generation of random graphs with
constraints on induced width is significantly more involved than the
generation of graphs with constraints on node degree and number of edges.
In the paper
above, we report on new algorithms that accomplish generation of
graphs with simultaneous constraints on all these quantities: induced
width, node degree, and number of edges.
Finding the exact value of induced width is NP-hard problem with no
easy solution. Then, in order to get more efficiency, we compute as ''induced
width'' a value obtained with a particular efficient heuristic. We observed
that the heuristic approximates very well the exact value of the induced
width.
Downloading BNGenerator
In this package, you can find all the necessary files to run the latest version of the BNGenerator,
and the related source files.
Running BNGenerator
BNGenerator is coded in the Java language; to run it,
you need to have the Java Virtual Machine installed. We have coded
BNGenerator using Java 1.2; it is likely that everything will work
with Java 1.0 and Java 1.1, but we cannot guarantee it. Download Java
1.2 or later from JavaSoft
if you don't have it yet.
BNGenerator is run as follows (assuming all files and the colt.jar
library are in the same directory):
java BNGenerator -classpath .;colt.jar
[- optionvalue]*
where [-optionvalue]
indicates a sequence of pairs where option can be
any of:
-namevalue
Every option has a default value that is assumed if the
option is not specified. The options are:
- nNodes
- the number of nodes in the networks that are generated. Default
is 4. Note: nNodes must be larger than 3 (you
can easily generate all directed acyclic graphs with 3 nodes).
- maxDegree
- The maximum degree of any node in the networks that are
generated (the degree of a node is the sum of incoming and outgoing
arcs). Default is (nNodes - 1). Note:
maxDegree must be larger than 2 (you can easily enumerate
all graphs with nNodes and maxDegree
equal to 2).
- maxArcs
- The maximum number of arcs that can be present
in the generated networks. Note that, for a given number of nodes
and a given maximum degree, the number of arcs must satisfy
some constraints. If the specified number of arcs is impossible,
a message is printed. The default behavior is to ignore any
constraint on the number of arcs.
- maxIW
- The maximum value of induced width in the
generated networks. Induced width conveys the algorithmic complexity of inferences
and, indirectly, it captures how dense the network is. The default behavior
is to ignore any constraint on induced width.
- nBNs
- The number of random Bayesian networks that
are generated and actually saved in
files. Default is 1.
- nTransitions
- The number of iterations (transitions in
the Markov chain built by BNGenerator) between networks are generated
and saved. Note that every iteration generates a new Bayesian network;
after nTransitions , a
network is saved in a file (and this process is repeated nBNs
times). Default is (4 * nNodes *
nNodes ).
- format
- The output format for the generated
networks. it can be either xml (in which case
the output is in the
XMLBIF
format) or java (in which case the output
is a Java program that can be used to input data into the
EBayes
library or xmljava (in which case both
outputs are generated). Default is xml.
- nVal
- The maximum number of values for
each variable (node) in the generated networks. Each variable has a
random number of values between 2 and nVal. Default
is 2 (every variable is binary).
- fName
- The name of the file(s) that
will receive output networks. An extension will be appended to
fName
, depending on the value of format . If
nBNs is larger than
one, a sequence of files is generated. The file names are of the form
fName X.format , where X is
a number. Default is Graph
.
- structure
- The type of network generated:
either singly (in which case singly-connected
networks will be generated) or multi (in which
case multi-connected networks will be generated with Algorithm 1
of
paper
, if there is no constraint on induced width; otherwise, networks will be
generated with Algorithm PMMixed of
paper
). Singly connected networks are usually called
polytrees. Note that
multi option leads to
the generation of generic graphs, including graphs that
are singly connected, trees, and chains. But the probability of hitting
a singly connected graph using the multi option is
really small for large values of nNodes. Default is
multi.
Also there is the testUnif option that
should not be used except if you are interested in testing uniformity
for generated networks; if so, contact the developers of BNGenerator
for help.
Examples
The following lines indicate valid calls to BNGenerator:
- java -classpath .;colt.jar
BNGenerator -nNodes 20
- maxDegree 3 -nBNs
1 - fName example

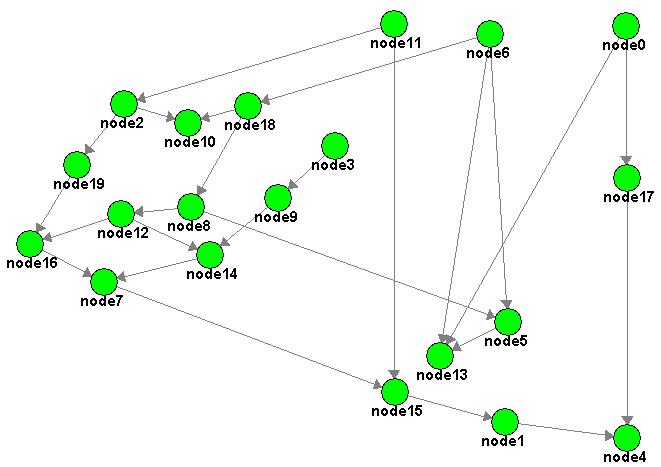

- Generates one Bayesian
network with 20 binary nodes and stores the network in the file
example1.xml
. Every node has a maximum degree of 3. Before the final
network is saved, 1600 transitions are performed (using the default
4*20*20).
The
resulting network is here.
java -classpath
.;colt.jar BNGenerator -nNodes
20 - maxDegree 3 -nBNs 1
- maxArcs 25 -fName example

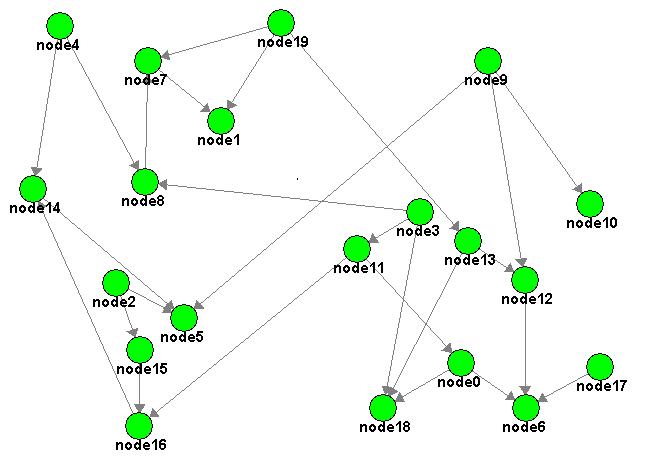

Same as previous
example, but with a limit on the number of arcs (limited to 25).
The resulting network is here.
- java -classpath
.;colt.jar BNGenerator -nNodes
20 - maxDegree 3 -nBNs
10 -nVal 5 -nTransitions
10000 - fName example

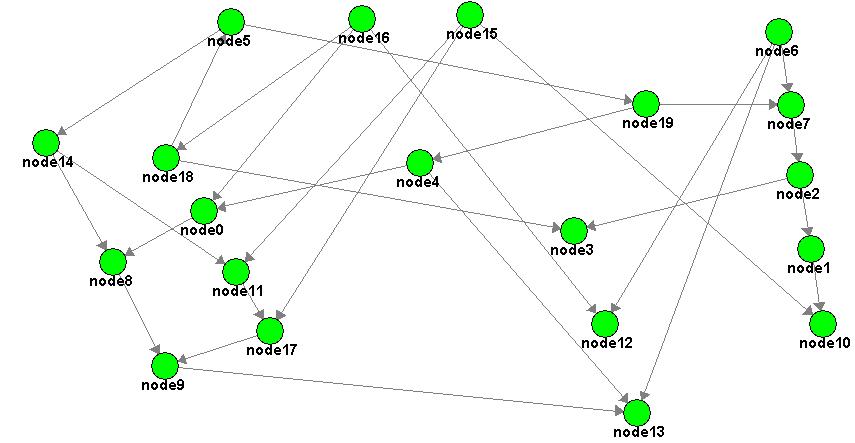

- Generates ten
Bayesian networks with 20 nodes. Each variable has 2 to 5 values.
The networks are saved in files exampleX.xml, where
X goes from 1 to 10. Every node has a maximum degree of 3. Between
any two networks are saved (and before the first network is saved),
10000 transitions are performed.
One of the resulting networks is here.
- java -classpath
.;colt.jar BNGenerator - nNodes
20 -maxDegree 3 - nBNs
1 - fName example
- Generates
one Bayesian network with 20 binary nodes and stores the network
in the file example1.xml . Every node has a maximum
degree of 3. Before the final network is saved, 1600 transitions are
performed (using the default 4*20*20).
The resulting network is here.
java -classpath .;colt.jar BNGenerator -
nNodes 20 -maxDegree 3 -
nBNs 1 - structure singly -
fName example

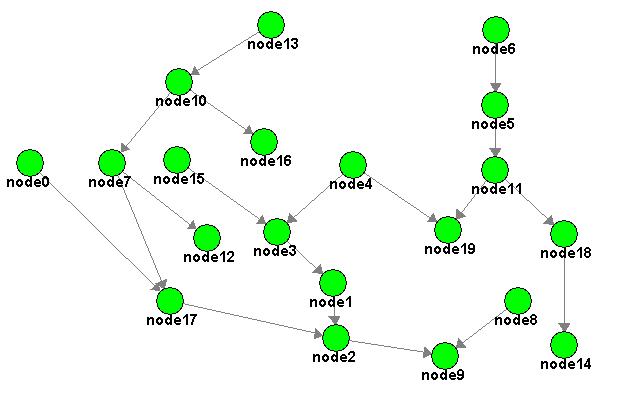

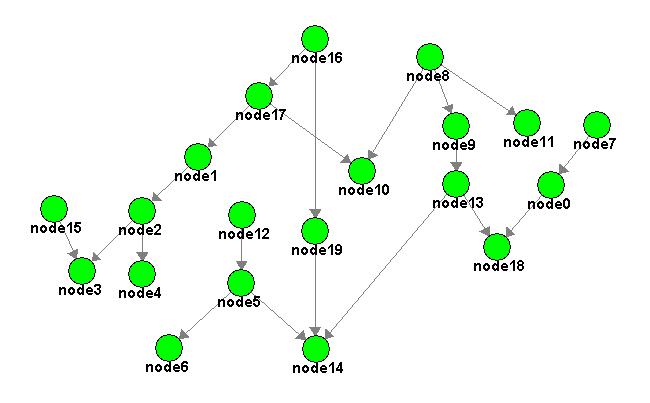

Same
as the last one, but now the program is constrained to generate
a polytree.
The resulting network is here.
-
java -classpath .;colt.jar BNGenerator -
nNodes 15 -maxDegree 14 -
nBNs 1 - fName example -structure
pmmixed -maxIW 2
-
Generates one Bayesian network with 15 binary nodes and stores
the network in the file example1.xml. The network has a
maximum heuristic width of 2 (computed using the minimum weight heuristic
implementation of EBayes). Heuristic width is calculated instead
of induced width because of computational complexity (details in the
paper
).
The resulting network is here.
Acknowledgments
We thank Nir Friedman for suggesting the Dirichlet distribution
method, and Robert Castelo for pointing us to Melançon et al's
work. We thank Guy Melançon for confirming that the idea of
constructing connected directed acyclic graph was sound and for making
his DagAlea software available. We also thank Jaap Suermondt and Alessandra
Potrich for providing important ideas, and Y. Xiang, P. Smets, D. Dash,
M. Horsh, E. Santos, and B. D'Ambrosio for suggesting valuable procedures.
This research was conducted at the
Decision Making Lab
at the University
of Sao Paulo
, with support from the funding agency
FAPESP
; both institutions are in Sao Paulo, Brazil.
